OpenCart Integration

Overview

• OpenCart is an easy-to-use, powerful, Open Source online store management program that can manage multiple online stores from a single back-end.
• The following guide will show you how to integrate your OpenCart store with DHL Express Commerce. Once completed, your orders will automatically import into DHL Express Commerce and the tracking numbers will be written back to OpenCart when you print a label.

Supported Versions

• Version 2

  • 2.1.0.1 - 2.3.0.2
    Download DHL Express Extension for OpenCart 2.1.0.1 - 2.3.0.2

• Version 3

  • 3.0.0.0 - 3.0.2.0
    Download DHL Express Extension for OpenCart 3.0.0.0 - 3.0.2.0

  • 3.0.3.0 - 3.0.3.8
    Download DHL Express Extension for OpenCart 3.0.3.0 - 3.0.3.8

1. Download & install the DHL Express Commerce app in your OpenCart account

1. Download the extension at the bottom of the article. There are two files to choose from, depending on whether you are running OpenCart v2 or v3.
2. Unzip the downloaded file. Please refer to the readme (included in the zip file) for instructions on how to install the extension.

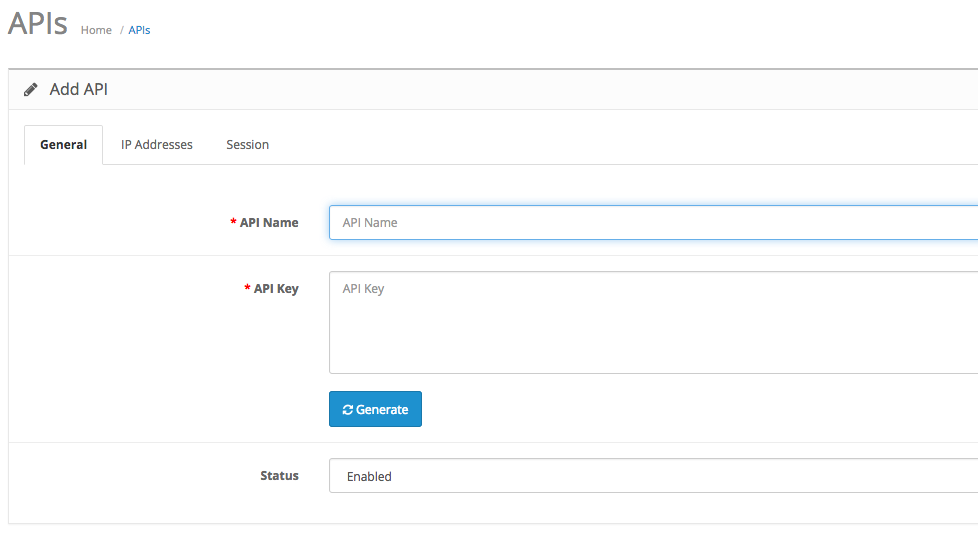

2. Create an API access for DHL Express Commerce in OpenCart

• Log into your OpenCart administration site
• Go to Settings > Users > API
• Complete API Name (this can be whatever you want it to be, eg. OpenCart DHL API)
• Click Generate to generate the API Key
  • NB: you will need to copy and paste the API Name and API Key into your DHL Express Commerce admin account in the following step
• Set Status as Enabled
• Go to the IP Addresses Tab
• Add the following IP addresses (click the + button to add more):


  • 125.236.193.73
    125.236.193.73
    13.70.65.114
    13.70.65.145
    13.70.67.84
    13.70.71.54
    13.70.71.83
    13.70.72.35
    13.73.195.135
    13.75.138.224
    193.56.253.248
    20.188.208.134
    20.53.214.57
    20.92.152.254
    20.92.156.8
    20.92.157.172
    20.92.157.230
    20.92.157.243
    20.92.158.151
    20.92.158.179
    20.92.158.19
    20.92.158.221
    20.92.158.37
    20.92.158.6
    20.92.208.162
    20.92.208.164
    20.92.208.191
    20.92.209.127
    20.92.209.191
    20.92.209.249
    20.92.209.91
    20.92.210.145
    20.92.211.128
    20.92.211.187
    20.92.211.217
    20.92.211.225
    52.147.2.39
    52.147.2.6
    52.147.24.109
    52.147.29.26
    52.147.3.4
    52.147.4.3
    52.187.229.183
    52.187.231.76
    89.44.10.247



• Click Save

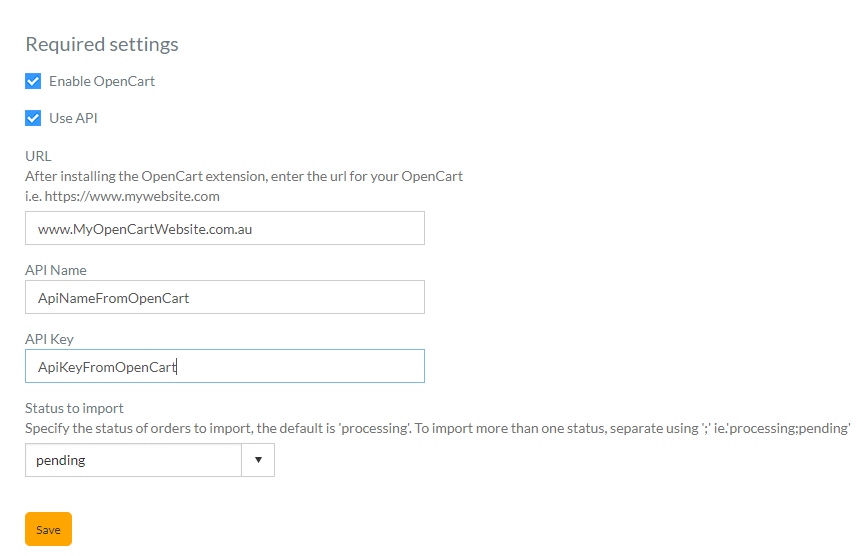

3. Add the OpenCart integration & API details into DHL Express Commerce

• Log into your DHL Express Commerce account
• Go to Settings > Integrations > Add a new integration > OpenCart
• Tick Enable OpenCart
• Tick Use API
• Fill in the API Name and API Key created in the previous step
  • NB: this name and API must be the same as the ones used in the previous step
• Click Save

Troubleshooting

Q : I am receiving the following error with my OpenCart integration - Unsuccessful - Unexpected character encountered while parsing value: <. Path '', line 0, position 0

A : Make sure your store URL in the integration does not have /admin on the end. e.g https://mystore.com and not, https://mystore.com/admin

Q : I am receiving the following error with my OpenCart integration - Unsuccessful - Check version matches store version The remote server returned an error: (404) Not Found.

A : Check you have the correct version selected in the 'OpenCart Version' drop down box
